| Quantity: | |
|---|---|
4x8 96x48 2440x1220 2400x1200 1800x1200
OEM
392020

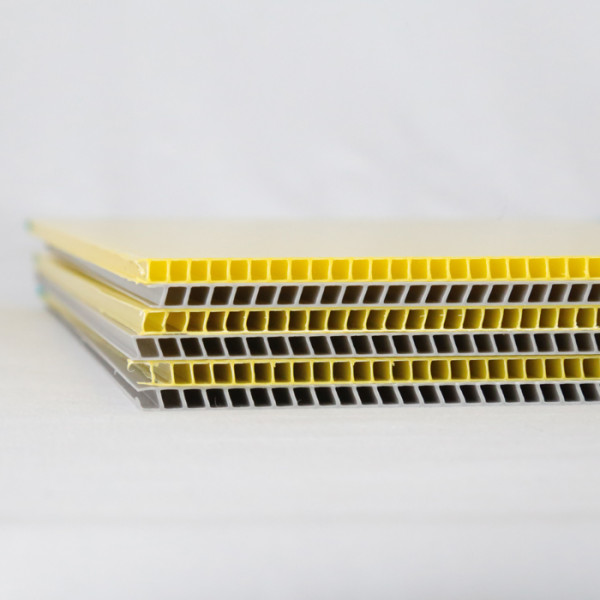

2-12mm Corrugated Plastic Sheets Product Details:
2-12mm Corrugated Plastic Sheets is also synonymous with Polypropylene Corrugated Sheet, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Sheet etc., is co-extruded from polypropylene or polyethylene resin. Corrugated Plastic Sheets is widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.

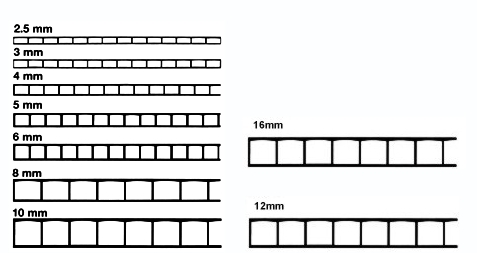

2-12mm Corrugated Plastic Sheets Technical Data Sheet:
Item | Unit | Thickness ＆ Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
2-12mm Corrugated Plastic Sheets Product Details:
2-12mm Corrugated Plastic Sheets is also synonymous with Polypropylene Corrugated Sheet, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Sheet etc., is co-extruded from polypropylene or polyethylene resin. Corrugated Plastic Sheets is widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.
2-12mm Corrugated Plastic Sheets Technical Data Sheet:
Item | Unit | Thickness ＆ Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | PP＆PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
