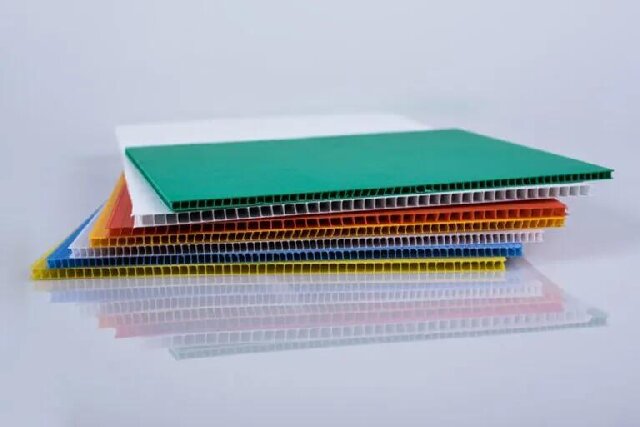

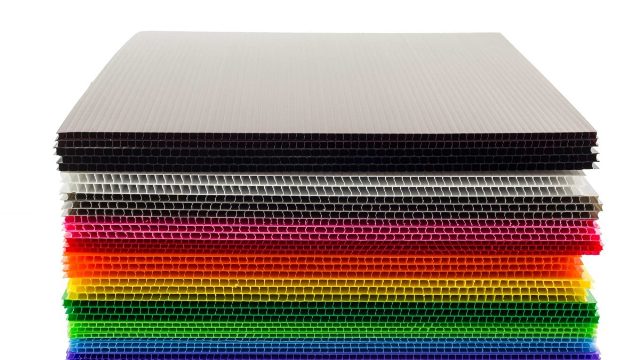

Coroplast Sheets Product Details
Coroplast Sheet is also synonymous with Corrugated Plastic Sheets, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Sheet etc., is co-extruded from polypropylene or polyethylene resin. Made of lightweight, strong polypropylene, Coroplast Sheets are widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.
Technical Data Sheet:
Item | Unit | Thickness & Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
Coroplast Sheets Product Details
Coroplast Sheet is also synonymous with Corrugated Plastic Sheets, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Sheet etc., is co-extruded from polypropylene or polyethylene resin. Made of lightweight, strong polypropylene, Coroplast Sheets are widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.
Technical Data Sheet:
Item | Unit | Thickness & Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
Coroplast Sheet Product Specifications
Product | Corrugated Plastic Sheet / Coroplast / Corflute / Correx / Corex |
Material | Polypropylene (PP) / Polyethylene (PE) |
Size (L*W) | 8'X4', 2400X1200, 1800x1200, 2000X900, 1200X1000, 36"X24", 24"X18" etc. |
Thickness (T) | 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm etc. |
Grade | Corona Treatment, UV Stabilized, Anti-static, Conductive, Flame retardant etc. |
Packing | PE film and corner protectors / Pallet packing / Carton pack / Customized packing etc. |
Color | Black, White, Blue, Grey, Yellow, Green, Pink, Red, Translucent, Purple or Customized etc. |
Certificate | ISO9001:2008, SGS, ROHS, REACH etc |
Coroplast Sheet Product Specifications
Product | Corrugated Plastic Sheet / Coroplast / Corflute / Correx / Corex |
Material | Polypropylene (PP) / Polyethylene (PE) |
Size (L*W) | 8'X4', 2400X1200, 1800x1200, 2000X900, 1200X1000, 36"X24", 24"X18" etc. |
Thickness (T) | 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm etc. |
Grade | Corona Treatment, UV Stabilized, Anti-static, Conductive, Flame retardant etc. |
Packing | PE film and corner protectors / Pallet packing / Carton pack / Customized packing etc. |
Color | Black, White, Blue, Grey, Yellow, Green, Pink, Red, Translucent, Purple or Customized etc. |
Certificate | ISO9001:2008, SGS, ROHS, REACH etc |
Coroplast Feature:
· Durable
· Impact resistant
· High strength and light weight
· Easy to fabricate or custom die cut
· Unaffected by water, oil and chemicals
· Delivery in sheet or roll as requested
· Produced in environment friendly Polypropylene
· Ideal for disposable and reusable purposes
· Temperature range from -20 to +80 degrees
Coroplast Feature:
· Durable
· Impact resistant
· High strength and light weight
· Easy to fabricate or custom die cut
· Unaffected by water, oil and chemicals
· Delivery in sheet or roll as requested
· Produced in environment friendly Polypropylene
· Ideal for disposable and reusable purposes
· Temperature range from -20 to +80 degrees
</template>Available in Customized :
· UV Resistant
· Anti-Static Grade
· ESD Conductive
· Corona Treatment
· Fire Retardant (UL94)
· Ultra-Sonic & Heat Welding
· Edge Sealed and Round Corners
Available in Customized :
· UV Resistant
· Anti-Static Grade
· ESD Conductive
· Corona Treatment
· Fire Retardant (UL94)
· Ultra-Sonic & Heat Welding
· Edge Sealed and Round Corners
