2400x1200 1800x1200 2000x1000 2000x900
OEM
392020
Corflute Sheet for Printing Protection Packing Product Details

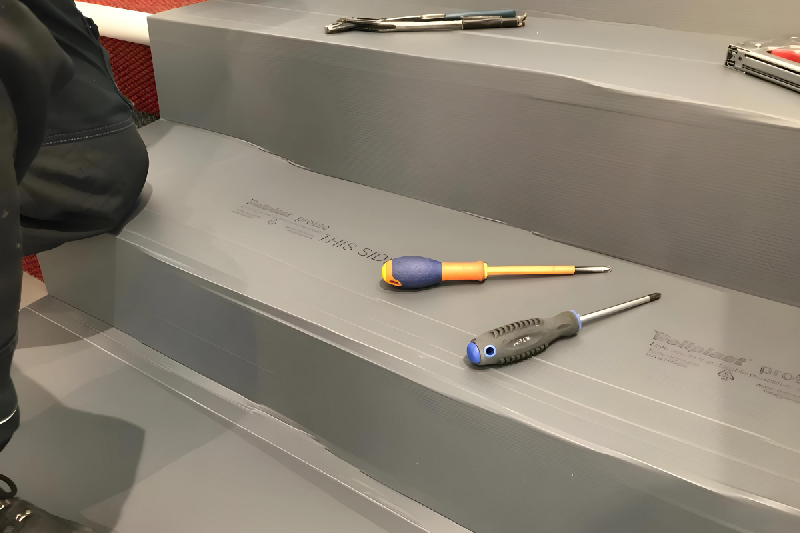

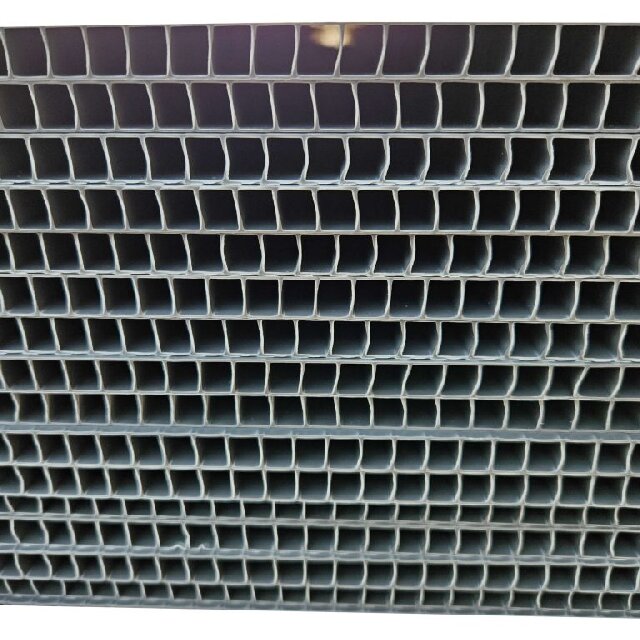

Corflute Sheets is also synonymous with Core Flute Sheet, Coreflute Sheets, Corflute Sheeting, Corrugated Plastic Sheets, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Sheet etc., is co-extruded from polypropylene or polyethylene resin. Coroplast Sheets is widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.
Corflute Sheet for Printing Protection Packing Technical Data Sheet:
Item | Unit | Thickness & Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
Corflute Sheet for Printing Protection Packing Product Details
Corflute Sheets is also synonymous with Core Flute Sheet, Coreflute Sheets, Corflute Sheeting, Corrugated Plastic Sheets, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Sheet etc., is co-extruded from polypropylene or polyethylene resin. Coroplast Sheets is widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.
Corflute Sheet for Printing Protection Packing Technical Data Sheet:
Item | Unit | Thickness & Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
Corflute Sheet for Printing Protection Packing Specifications
Product | Corrugated Plastic Sheet / Coroplast / Corflute / Correx / Corex / Core Flute |
Material | Polypropylene (PP) / Polyethylene (PE) |
Size (L*W) | 8'X4', 2400X1200, 1800x1200, 2000X900, 1200X1000, 36"X24", 24"X18" etc. |
Thickness (T) | 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm etc. |
Grade | Corona Treatment, UV Stabilized, Anti-static, Conductive, Flame retardant etc. |
Packing | PE film and corner protectors / Pallet packing / Carton pack / Customized packing etc. |
Color | Black, White, Blue, Grey, Yellow, Green, Pink, Red, Translucent, Purple or Customized etc. |
Certificate | ISO9001:2008, SGS, ROHS, REACH etc |
Corflute Sheet for Printing Protection Packing Specifications
Product | Corrugated Plastic Sheet / Coroplast / Corflute / Correx / Corex / Core Flute |
Material | Polypropylene (PP) / Polyethylene (PE) |
Size (L*W) | 8'X4', 2400X1200, 1800x1200, 2000X900, 1200X1000, 36"X24", 24"X18" etc. |
Thickness (T) | 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm etc. |
Grade | Corona Treatment, UV Stabilized, Anti-static, Conductive, Flame retardant etc. |
Packing | PE film and corner protectors / Pallet packing / Carton pack / Customized packing etc. |
Color | Black, White, Blue, Grey, Yellow, Green, Pink, Red, Translucent, Purple or Customized etc. |
Certificate | ISO9001:2008, SGS, ROHS, REACH etc |
Corflute Sheet for Printing Protection Packing Feature:
· Durable
· Impact resistant
· High strength and light weight
· Easy to fabricate or custom die cut
· Unaffected by water, oil and chemicals
· Delivery in sheet or roll as requested
· Produced in environment friendly Polypropylene
· Ideal for disposable and reusable purposes
· Temperature range from -20 to +80 degrees
Corflute Sheet for Printing Protection Packing Feature:
· Durable
· Impact resistant
· High strength and light weight
· Easy to fabricate or custom die cut
· Unaffected by water, oil and chemicals
· Delivery in sheet or roll as requested
· Produced in environment friendly Polypropylene
· Ideal for disposable and reusable purposes
· Temperature range from -20 to +80 degrees
Available in Customized Corflute Sheet for Printing Protection Packing :
· UV Resistant
· Anti-Static Grade
· ESD Conductive
· Corona Treatment
· Fire Retardant (UL94)
· Ultra-Sonic & Heat Welding
· Edge Sealed and Round Corners
Available in Customized Corflute Sheet for Printing Protection Packing :
· UV Resistant
· Anti-Static Grade
· ESD Conductive
· Corona Treatment
· Fire Retardant (UL94)
· Ultra-Sonic & Heat Welding
· Edge Sealed and Round Corners
