8x4 4mm Polypropylene Coroplast Corrugated Plastic Sheet for Printing Product Details
4x8 Polypropylene Material 4mm Coroplast Corrugated Plastic Sheet is also synonymous with Polypropylene Corrugated Sheet, Corrugated Plastic Sheets, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Profile Sheet etc., is co-extruded from polypropylene or polyethylene resin. 4mm White Polypropylene Coroplast Sheet is widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.

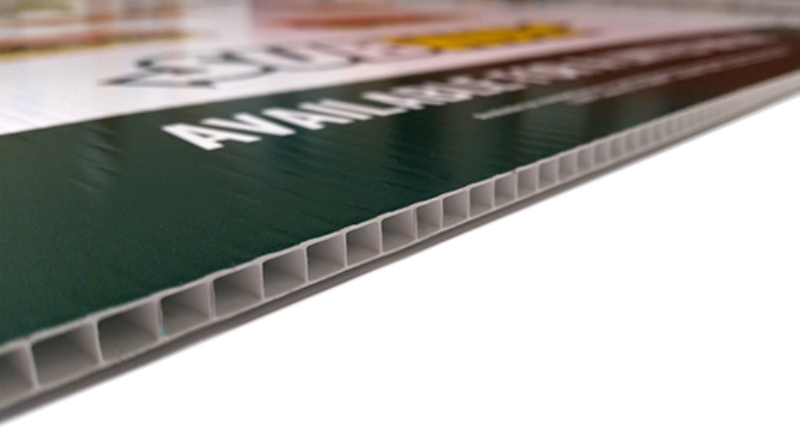

Corrugated Plastic Coroplast Sheets for printing signs is a high quality, tough and durable polypropylene co - polymer in Corona Treatment or with UV stabilizes, which can withstand sunlight and general weather conditions. 4mm Polypropylene Coroplast Corrugated Plastic Sheet for Printing is perfect for screen-printing, digital printing and for use with vinyl.
4mm Polypropylene Coroplast Corrugated Plastic Sheet for Printing Technical Data Sheet:
Item | Unit | Thickness & Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
Available in Customized :
· UV Resistant
· Anti-Static Grade
· ESD Conductive
· Corona Treatment
· Fire Retardant (UL94)
· Ultra-Sonic & Heat Welding
· Edge Sealed and Round Corners
Coroplast Benefits :
· Ideal for Green and Sustainability Programs
· Temporary clean-room protection
· Granite & Marble countertop templates
· Protection of walls, floors and architectural features of all types
· Stairs and columns
· Subsoil protection applications
· Form work – a great alternative to plywood
· Waterproofing Membranes
· Enclosures/Partitions
· Available in sheets or rolls
· Concrete protection and as a barrier to water and rock penetration
· Color: White, Black, Clear, Grey, Blue, Green, Yellow, Red, Pink, Purple etc.
· Other sizes can be manufactured to order depending on volume required.
8x4 4mm Polypropylene Coroplast Corrugated Plastic Sheet for Printing Product Details
4x8 Polypropylene Material 4mm Coroplast Corrugated Plastic Sheet is also synonymous with Polypropylene Corrugated Sheet, Corrugated Plastic Sheets, Coroplast, Corflute, Correx, Corex, Danpla, Impraboard, Danpla, Corriboard, Fluteboard, Coreflute, Cartonplast, Twinwall Sheet or Hollow Profile Sheet etc., is co-extruded from polypropylene or polyethylene resin. 4mm White Polypropylene Coroplast Sheet is widely used in construction protection, printing signs, industrial packing and customized packaging boxes etc.
Corrugated Plastic Coroplast Sheets for printing signs is a high quality, tough and durable polypropylene co - polymer in Corona Treatment or with UV stabilizes, which can withstand sunlight and general weather conditions. 4mm Polypropylene Coroplast Corrugated Plastic Sheet for Printing is perfect for screen-printing, digital printing and for use with vinyl.
4mm Polypropylene Coroplast Corrugated Plastic Sheet for Printing Technical Data Sheet:
Item | Unit | Thickness & Physical Performance Parameter | ||||||||
2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | ||
Raw Material | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | PP&PE | |
Gram per Square Meter | GSM | 400 | 450 | 700 | 800 | 1200 | 1400 | 1600 | 1800 | 2000 |
Tension Fracture | N | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ≥550 | ≥600 |
Elongation at Break | % | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Horizontal Compression Ratio | N | ≥700 | ≥900 | ≥1000 | ≥2500 | ≥3000 | ≥3500 | ≥4000 | ≥4500 | ≥5000 |
Vertical Compression Ratio | N | ≥90 | ≥150 | ≥350 | ≥600 | ≥600 | ≥700 | ≥750 | ≥800 | ≥1000 |
Tearing Force | N | ≥50 | ≥60 | ≥70 | ≥80 | ≥100 | ≥150 | ≥160 | ≥180 | ≥210 |
Available in Customized :
· UV Resistant
· Anti-Static Grade
· ESD Conductive
· Corona Treatment
· Fire Retardant (UL94)
· Ultra-Sonic & Heat Welding
· Edge Sealed and Round Corners
Coroplast Benefits :
· Ideal for Green and Sustainability Programs
· Temporary clean-room protection
· Granite & Marble countertop templates
· Protection of walls, floors and architectural features of all types
· Stairs and columns
· Subsoil protection applications
· Form work – a great alternative to plywood
· Waterproofing Membranes
· Enclosures/Partitions
· Available in sheets or rolls
· Concrete protection and as a barrier to water and rock penetration
· Color: White, Black, Clear, Grey, Blue, Green, Yellow, Red, Pink, Purple etc.
· Other sizes can be manufactured to order depending on volume required.
Coroplast Floor Protection Sheet Product Specifications
Product | Corrugated Plastic Sheet / Coroplast / Corflute / Correx / Corex |
Material | Polypropylene (PP) / Polyethylene (PE) |
Size (L*W) | 8'X4', 2400X1200, 1800x1200, 2000X900, 1200X1000, 36"X24", 24"X18" etc. |
Thickness (T) | 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm etc. |
Grade | Corona Treatment, UV Stabilized, Anti-static, Conductive, Flame retardant etc. |
Packing | PE film and corner protectors / Pallet packing / Carton pack / Customized packing etc. |
Color | Black, White, Blue, Grey, Yellow, Green, Pink, Red, Translucent, Purple or Customized etc. |
Certificate | ISO9001:2008, SGS, ROHS, REACH etc |
Coroplast Floor Protection Sheet Product Specifications
Product | Corrugated Plastic Sheet / Coroplast / Corflute / Correx / Corex |
Material | Polypropylene (PP) / Polyethylene (PE) |
Size (L*W) | 8'X4', 2400X1200, 1800x1200, 2000X900, 1200X1000, 36"X24", 24"X18" etc. |
Thickness (T) | 1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm etc. |
Grade | Corona Treatment, UV Stabilized, Anti-static, Conductive, Flame retardant etc. |
Packing | PE film and corner protectors / Pallet packing / Carton pack / Customized packing etc. |
Color | Black, White, Blue, Grey, Yellow, Green, Pink, Red, Translucent, Purple or Customized etc. |
Certificate | ISO9001:2008, SGS, ROHS, REACH etc |
Coroplast Floor Protection Sheet Features:
· Light weight and easy to handling
· Tough and durable and impact resistant
· Non toxic and resistant to chemicals
· Washable, fiber, and dust free
· Reusable and 100% recyclable
· Available in flame retardant version
· Durable in cold and humid environments
Coroplast Floor Protection Sheet Features:
· Light weight and easy to handling
· Tough and durable and impact resistant
· Non toxic and resistant to chemicals
· Washable, fiber, and dust free
· Reusable and 100% recyclable
· Available in flame retardant version
· Durable in cold and humid environments
4mm White Polypropylene Coroplast Floor Protection Sheet Advantages :
· Light weight
· Strong and durable
· Impact resistant
· Hygienic
· Water resistant
· Non toxic and resistant to chemicals
· Cost effective
· Easy to convert
· 100% recyclable
· Available in recycle grade
· PMS colour range available
4mm White Polypropylene Coroplast Floor Protection Sheet Advantages :
· Light weight
· Strong and durable
· Impact resistant
· Hygienic
· Water resistant
· Non toxic and resistant to chemicals
· Cost effective
· Easy to convert
· 100% recyclable
· Available in recycle grade
· PMS colour range available
